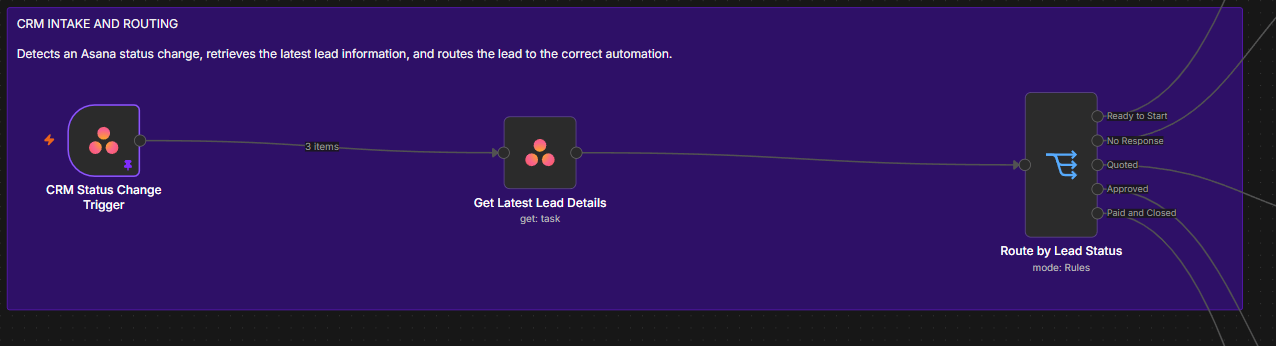

CRM Intake and Routing
An Asana status change triggers the workflow. The latest lead details are retrieved, then routing rules send the project to the correct automation branch.
AI Automation Case Study
Asana CRM Automation
An automated client management workflow that routes projects by status, manages follow ups, prepares onboarding materials, and supports retention communication from one connected process.
Project Overview
The workflow uses Asana as the source of project status. When a status changes, n8n retrieves the latest client information and routes the project to the correct automation for setup, follow up, onboarding, or retention.
Business Challenge
- Lead follow ups can be missed or sent inconsistently.
- Client setup requires repetitive folders, tasks, and emails.
- Teams must check replies before sending another message.
- Completed clients may receive generic retention communication.
Automated Solution
- Routes every project using its current Asana status.
- Creates client folders and required subtasks automatically.
- Checks Gmail and refreshes status before further follow ups.
- Uses AI to prepare a relevant maintenance recommendation.
Faster Follow UpsAutomated client communication
Consistent ProcessStandardized stage management
Less Admin WorkFewer repetitive updates
Project Walkthrough
Watch the Asana CRM automation route project status changes, manage follow ups, prepare onboarding materials, and update client tasks through one connected workflow.
How the Process Works
The automation follows six major stages. Each branch begins with the current Asana project status and performs only the actions required for that stage.
2

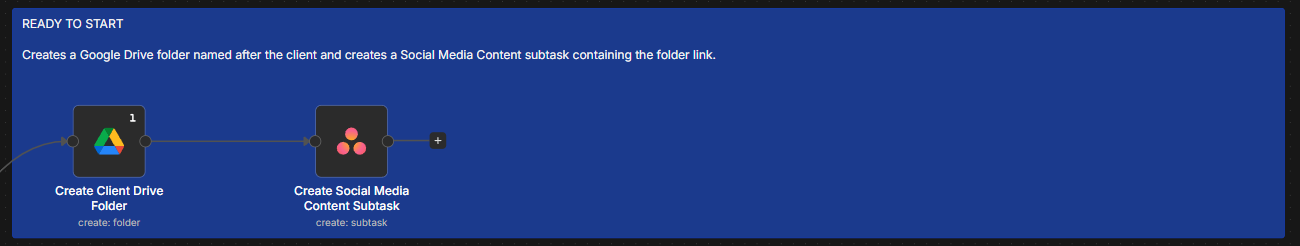

Ready to Start
The workflow creates a Google Drive client folder and adds a Social Media Content subtask in Asana with the folder link.
3

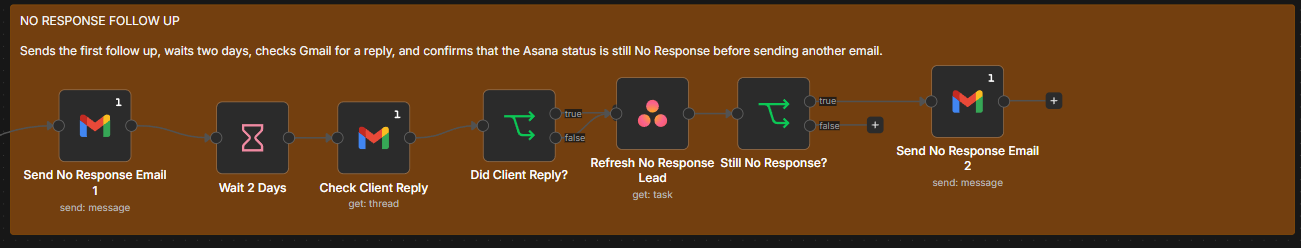

No Response Follow Up
The first follow up is sent, the workflow waits two days, checks Gmail for a reply, refreshes the Asana lead, and confirms that the status is still No Response before sending again.
4

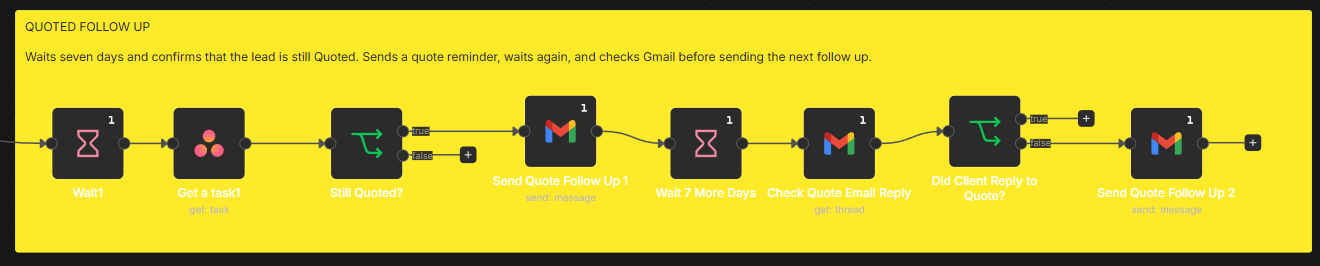

Quoted Follow Up
After a scheduled wait, the workflow verifies that the lead remains Quoted, sends a reminder, checks Gmail for a response, and sends the next follow up only when required.
5

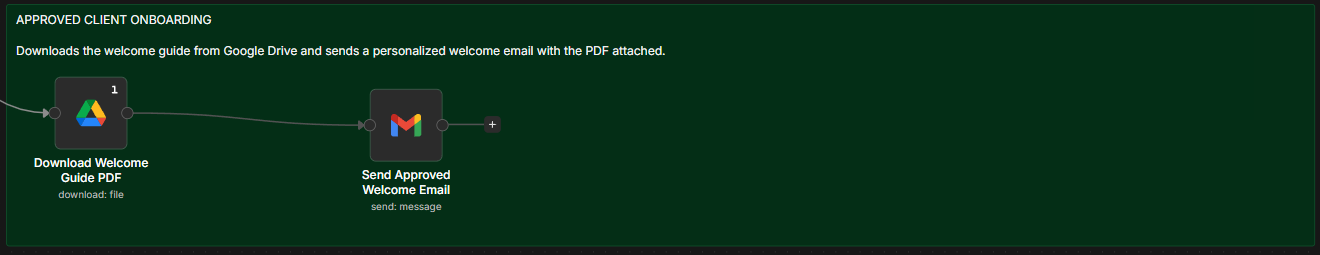

Approved Client Onboarding
The approved branch downloads the welcome guide from Google Drive and sends a personalized welcome email with the PDF attached.
6

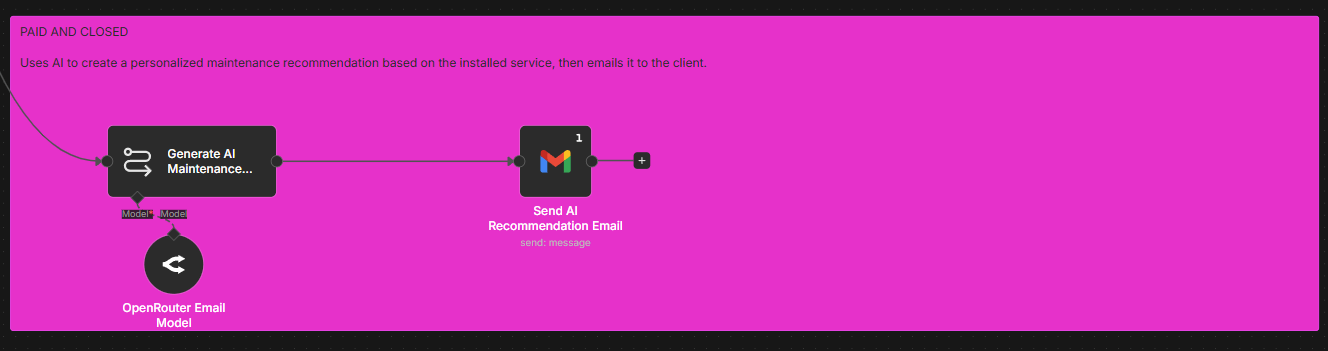

Paid and Closed
OpenRouter AI creates a maintenance recommendation based on the installed service, then Gmail sends the personalized message to the client.
Project Visuals
The solution overview explains the business value, while the full workflow shows the complete technical implementation.
Solution Overview
Full n8n Workflow
Important Automation Logic
The workflow includes safeguards that prevent communication from continuing when the customer has replied or the project status has changed.
Status Based RoutingEach project enters only the branch that matches its current Asana status.
Reply Aware Follow UpsGmail is checked before another follow up is sent.
Status RevalidationLead details are refreshed after waiting to confirm the project still qualifies.
Timed SequencesWait steps control the timing of No Response and Quoted reminders.
Automated File HandlingGoogle Drive folders and onboarding documents are prepared within the workflow.
AI PersonalizationOpenRouter generates a recommendation using the completed service context.
Technology and Integrations
| Tool | Role in the Solution |
|---|---|
| Asana | Stores lead details, project status, tasks, and subtasks. |
| n8n | Runs the routing, conditions, wait steps, and integrations. |
| Gmail | Sends client emails and checks for customer replies. |
| Google Drive | Creates client folders and stores the welcome guide. |
| OpenRouter AI | Generates the personalized maintenance recommendation. |
Production Considerations
Before live deployment, the workflow should be validated for reliability, privacy, and ongoing support.
Credentials and Security
Keep Asana, Gmail, Google Drive, and AI credentials protected.
Keep Asana, Gmail, Google Drive, and AI credentials protected.
Duplicate Prevention
Confirm the same status event cannot create duplicate tasks or messages.
Confirm the same status event cannot create duplicate tasks or messages.
Error Handling
Capture failed emails, missing files, invalid statuses, and API errors.
Capture failed emails, missing files, invalid statuses, and API errors.
Rate Limits and Billing
Monitor Gmail, Asana, Google Drive, n8n, and model usage.
Monitor Gmail, Asana, Google Drive, n8n, and model usage.
Testing
Validate every branch using test clients before production activation.
Validate every branch using test clients before production activation.
Monitoring
Review failed executions and confirm delayed follow ups complete successfully.
Review failed executions and confirm delayed follow ups complete successfully.
Explore the Project
View the full project visuals or return to the AI Automation portfolio.
